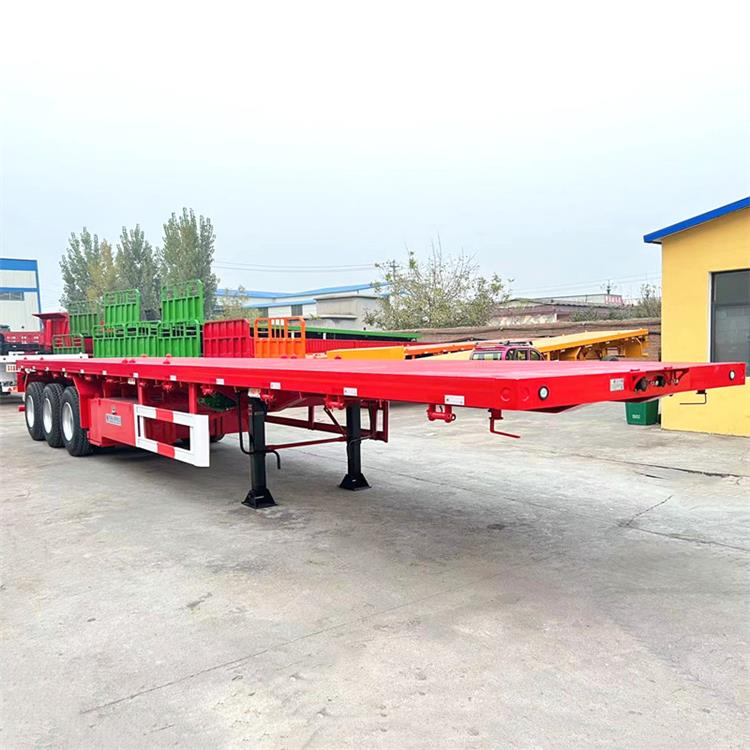

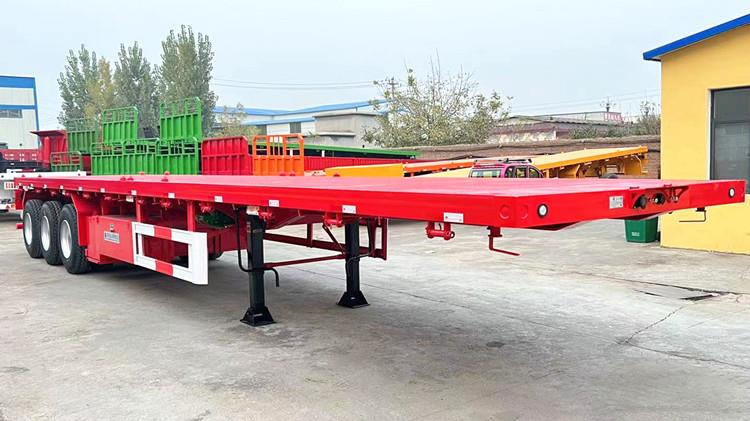

3 axle trailer is special trailer for transporting containers. The size of the 3 axle flatbed trailer in Guyana loading area is determined according to the standard container size, 40 foot flatbed trailer can transport 1×40ft or 2×20ft container.
A twist lock device for fixing the container is provided at positions corresponding to the four corners of the bottom of the container.
Flatbed trailer price has different models of flatbed trailer, such as 40ft, 20ft ,48ft, 53ft etc, with different number of axles, like 2 axle, 3 axle, 4 axle.
40 Foot Flatbed Container Trailer | 3 Axle Flatbed Trailer Price in Guyana Georgetown,gy
Platform of 40 Foot Flatbed Trailer Price in Guyana Georgetown,gy

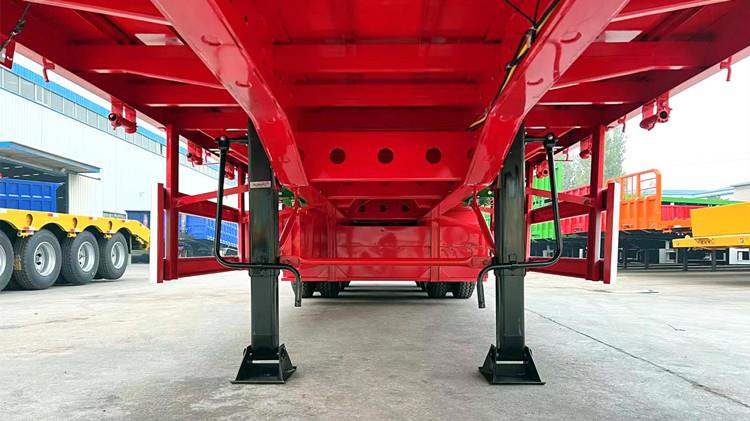

Main Beam of 3 Axle Flatbed Trailer Price in Guyana Georgetown,gy

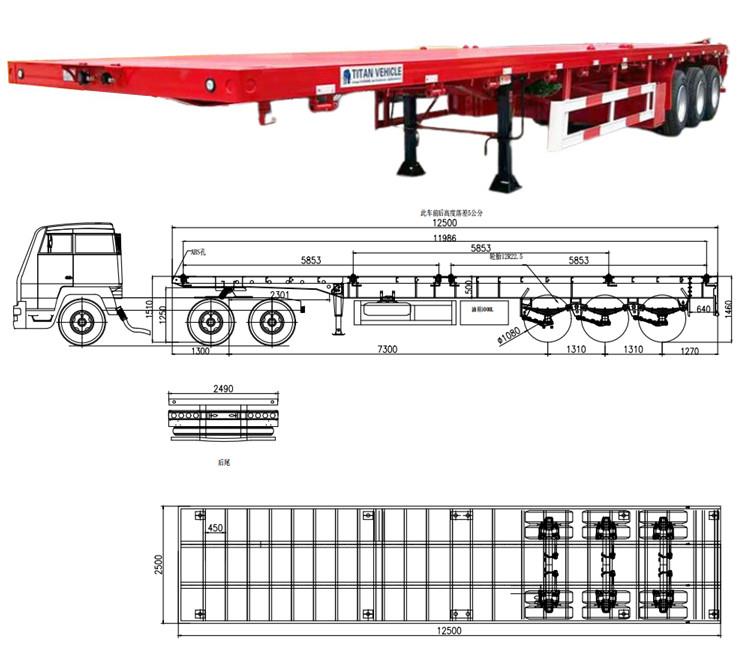

Dimension(mm): 12500x2500x1580mm
Loading capacity(ton): ≤75T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

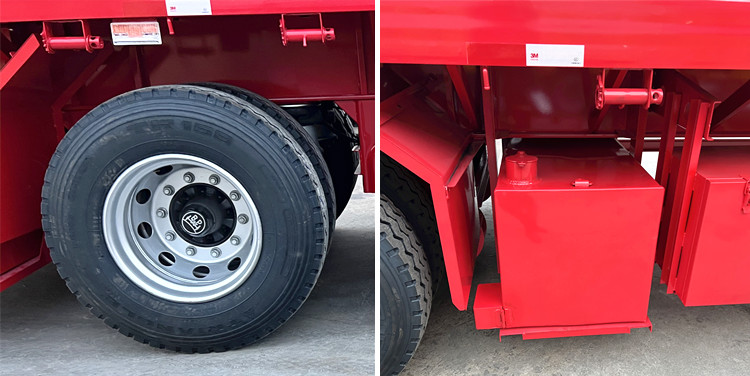

Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
1. The floor plate of 3 axle trailer is the mm and it’s diamond plate, It is thicker than the 2.5mm or 2mm floor plate of other factories. The floor plate is strong and durable, and is not easy to deform.
2. The bottom plate of 3 axle flatbed trailer price reinforced double plate at the gooseneck part of the main beam, and double plate for the middle beam, the deformation range of the flatbed semi trailer for sale during heavy load is small, which is better for use.
3. The thickness of the side beam of flatbed trailer made is 160mm, 100mm channel for through beam, and all of the through beam are supported by the Inclined support frame, and the distance of these frame no more than 500mm, which can ensure the 40 foot trailer not easy to deform.
4. Flatbed trailer price have 6 beams under the floor plate, effectively ensure the flatness of the floor plate.
Welcome to contact us for more information
